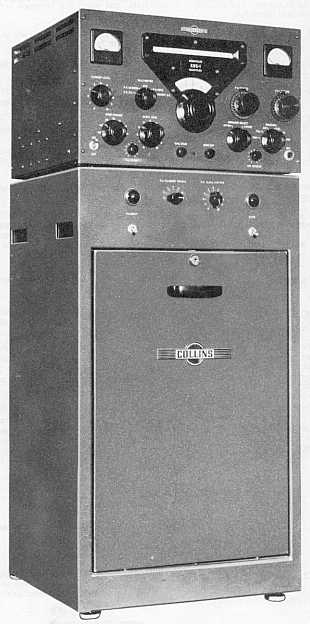

Collins KWS-1

Collins KWS-1

Introduction Date / Price: 1955 / $1995; $2095 (in 1958)
Tubes: 0B2 (2), 3TF4A (1), 5749 (1), 6AL5 (1), 6AU6 (1), 6BA6 (4), 6CL6 (2), 6X4 (1), 12AT7 (6), 4X150A or 4x250B (2).
Power Supply Section Tubes: 0B2 (1), 2D21 (1), 3B28 or 866A (2), 5U4 (1), 5Y3GT (1), 6AL5 (1), 6AS7G (1), 12AX7 (1).

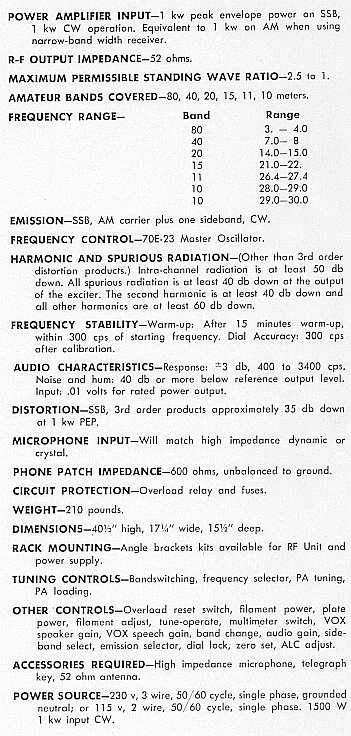

Specifications:

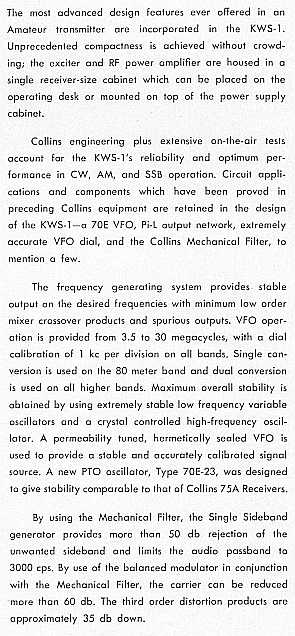

KWS-1 Description KWS-1 Specifications
